How to Adjust Marker Griffon Alpine Ski Bindings

(Video walking through entire process at the bottom of this post)

Your ski bindings are one of the most important parts of your setup. They keep you connected to your skis when you want power and precision — and release when you need safety. If you’re skiing on Marker Griffon Alpine bindings, you might be wondering how adjustments work.

Before we dive in: always see a certified ski technician for proper binding adjustment. DIN settings, forward pressure, and AFD alignment all depend on your skier profile (height, weight, age, skier type, boot sole length). Still, if you’re in a pinch on the hill, it helps to know how these adjustments work.

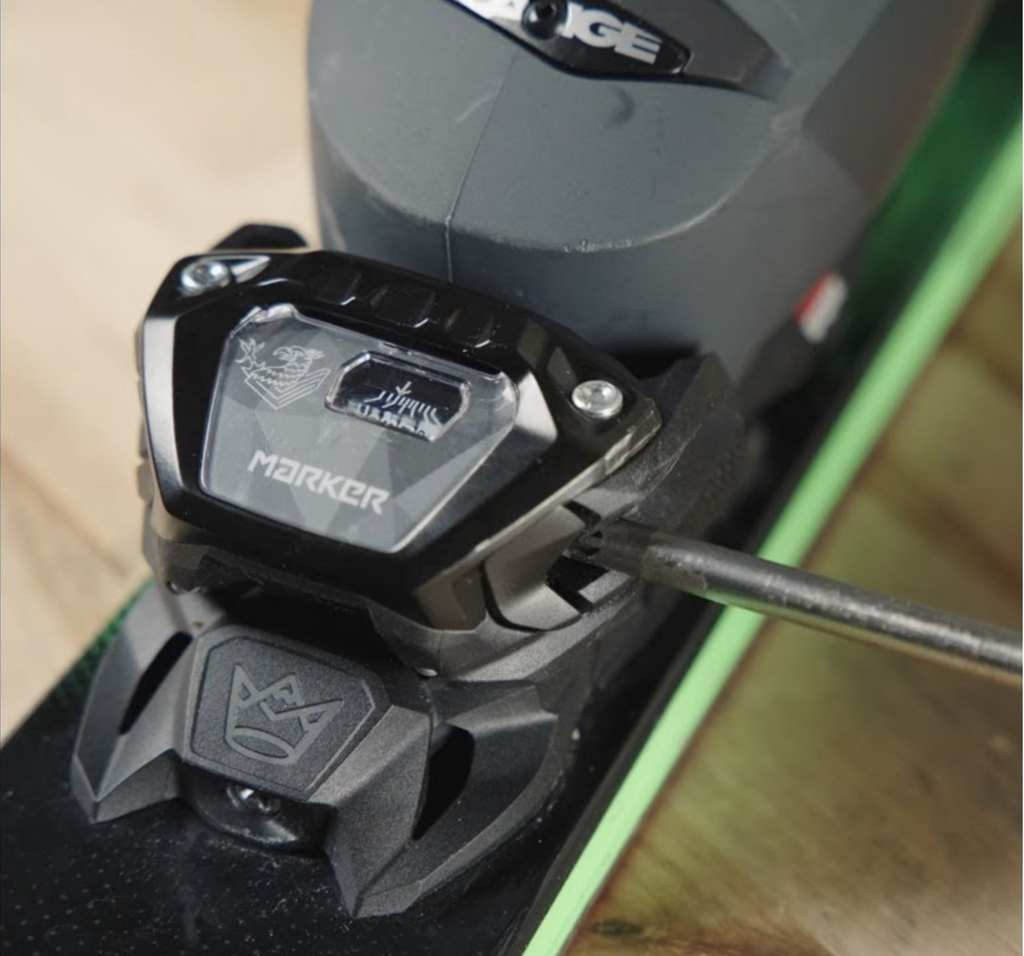

1. Adjusting the AFD (Anti-Friction Device)

The AFD sits under the toe piece of your binding and makes sure your boot can release smoothly. If it’s too low, there’s too much space between your boot and the binding. If it’s too tight, your boot won’t release properly.

To adjust:

• Use a Posi Drive or large Phillips screwdriver.

• Turn the screw counterclockwise to raise the AFD until it contacts the sole of your boot.

• Check with a 0.5mm test strip (or a business card). The strip should slide without folding or tearing.

2. Adjusting Forward Pressure

Forward pressure keeps your boot locked into the heel piece. If it’s too loose, you’ll pre-release. Too tight, and your skis won’t release when you need them to.

To adjust:

• Look at the forward pressure indicator screw on the heel piece.

• It should sit flush with the binding housing when your boot is clicked in, when adjusted properly.

• Turn the screw clockwise to add pressure, counterclockwise to reduce it.

• Always re-check with your boot clicked in.

3. Adjusting DIN Settings

DIN determines how easily your bindings release when force is applied. Too low, and you’ll eject every run. Too high, and you won’t release during a crash.

To adjust:

• Locate the DIN window on both the toe and heel pieces.

• Use the adjustment screw to set your DIN.

• Always match toe and heel numbers.

• Adjust one number at a time — small changes make a big difference.

Reminder: DIN settings should be done by a certified technician. They’re calculated using your skier profile, not just preference.

Final Word

Bindings aren’t a set-it-and-forget-it piece of gear. Whether you’re setting forward pressure, dialing in the AFD, or tweaking DIN, precision matters. The best move is always to bring your skis to a certified shop — but if you’re on the hill and need a quick fix, this video guide should help you understand the basics.
